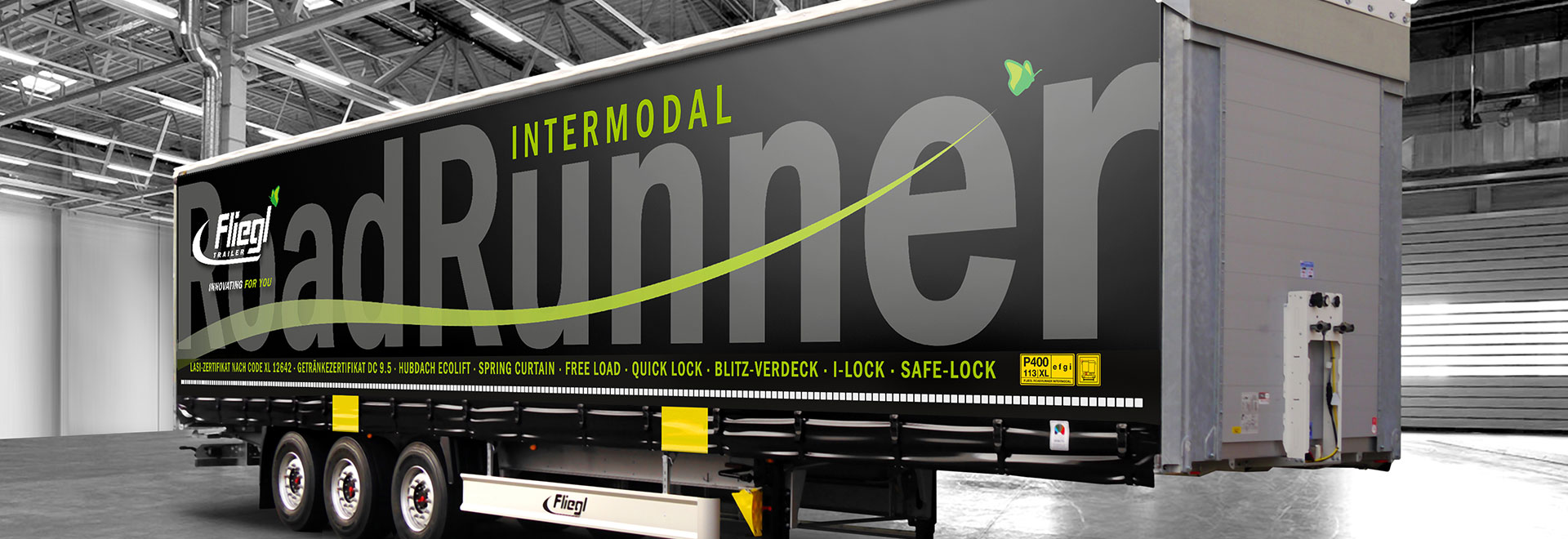

RoadRunner

Ingeniously versatile - even in the basic version.

Fliegl RoadRunners are reliable and economical. They are among the industry leaders in terms of empty weight and capacity and are true "workhorses". The RoadRunner brings up to500 kg payload advantage to the road compared to other semi-trailers. Even in the basic version, Fliegl focuses on simple and safe operation. Wherever it can be implemented, Fliegl relies on purely mechanical components and does without electronics.

The Fliegl RoadRunner is also available as a two-axle version. For every requirement with 9 tons or 10 tons axle load.

More than500 lashing points in the LoadLock outer frame allow the most flexible load securing. Every 20 cm you have the option of using a tensioning strap. Fliegl RoadRunners are tested according to EC 2007/46 and have triple load securing certification: According to EN 12642 XL, DL 9.5 and according to VDI 2700 sheet 12 ff. You will find a comprehensive range of equipment options for every RoadRunner specification.

With a wide range of equipment and load securing options, you are optimally equipped for every application.

Ausstattungsoptionen

Technical data

Technische Daten

type

RoadRunner

Total weight in kg

35,000

angles. Saddle load in kg

11,000

Empty weight in kg

5,800

Payload in kg

29,200

Frame neck height H in mm

115

Platform length PL in mm

13,650

Pitch width PB in mm

2,480

Total length GL in mm

13,850

Total width GB in mm

2,550

Total height GH front (fifth wheel) in mm

4,000

Internal height front IHV in mm

2,740

Internal height rear IHH in mm

2,790

Lateral throughput height SDH front in mm

2,650

Side through-loading height SDH rear in mm

2,700

Top height VH in mm

127

Saddle height AH in mm

1,150

Axis make

SAF or BPW disc (at the manufacturer's choice)

Single tire

385/65 R 22.5"
