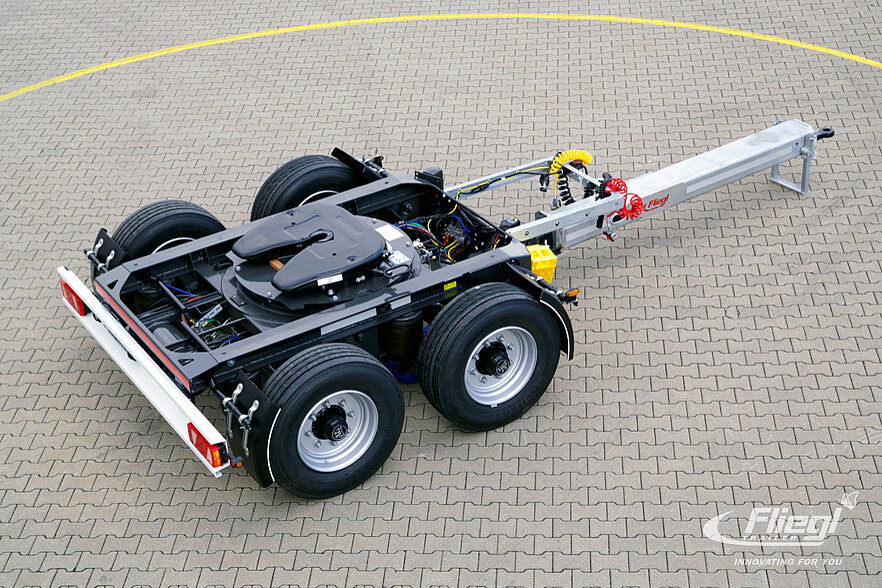

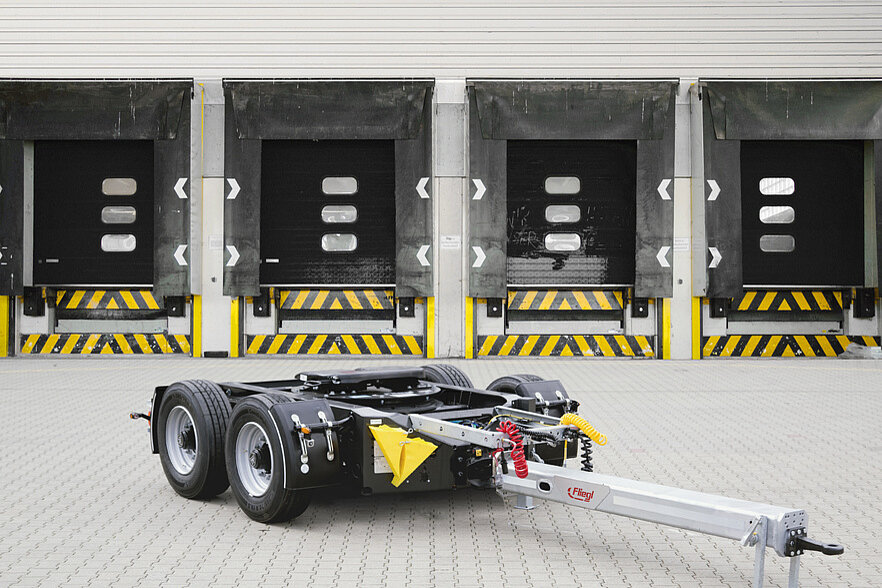

Progressive and patent pending

Dolly CLG: Clever. light. Steered.

With only 1300 kg it is approx. 50% lighter than other dollies on the market. Flat and compactly designed - with the new steering dolly CLG Fliegl creates a quantum leap in long truck traffic. 920 - 950 mm fifth wheel height stand for themselves and allow compliance with the legal 4-metre height limit.

The technology of the Dolly CLG is as simple as it is effective: purely mechanical, without sensitive, failure-prone hydraulics, electronics and steering axles.

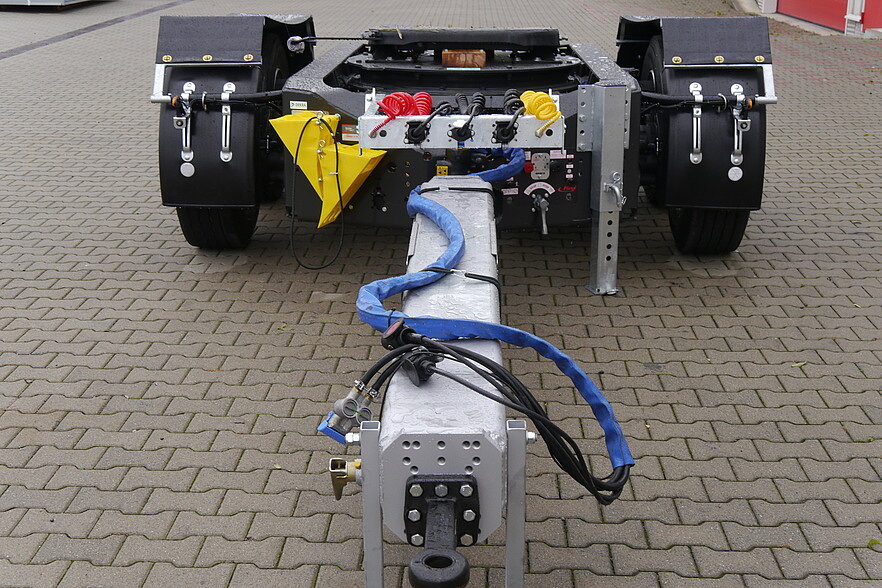

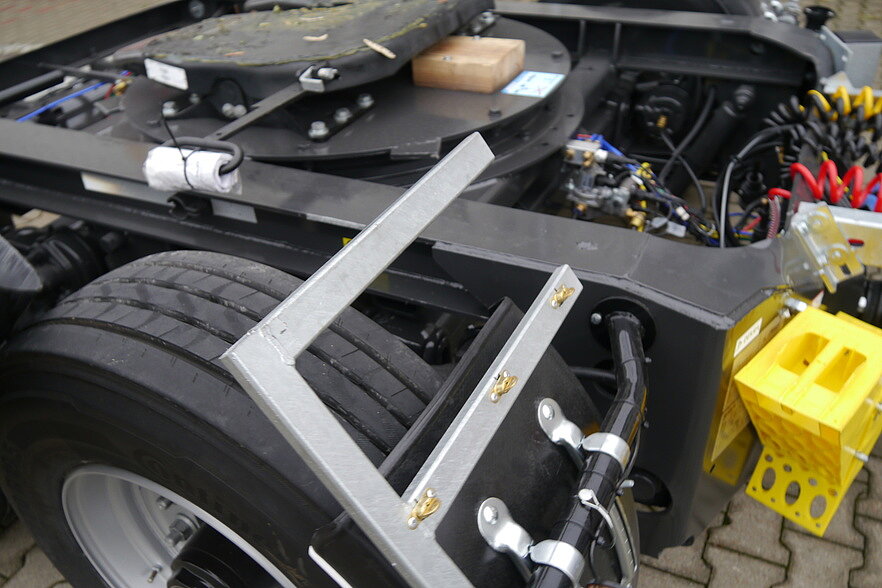

A rigid, under-coupled drawbar establishes the connection to the truck. The drawbar and dolly are combined via another conventional coupling, and a stable slewing ring prevents the trailer from rocking. The CLG dolly runs exactly on the radius of the truck front axle.

Plus points in the practical check:

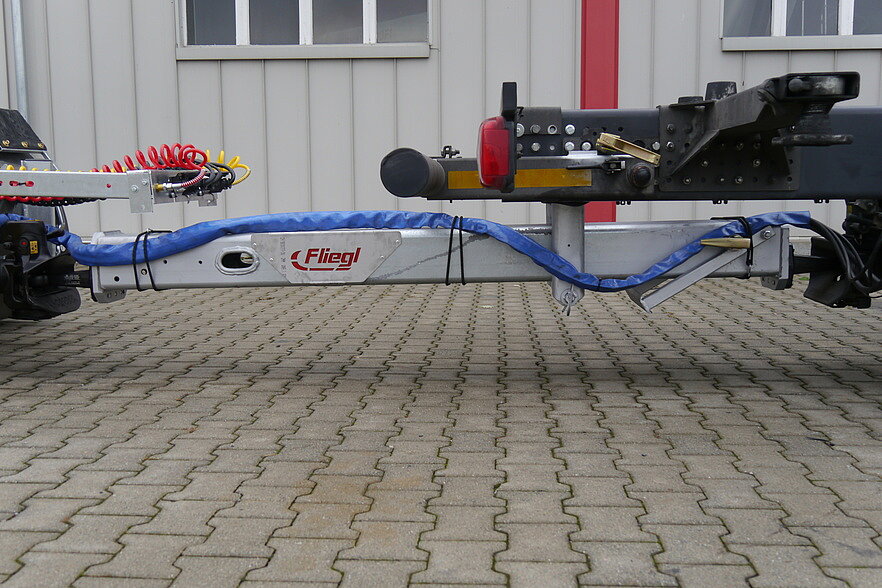

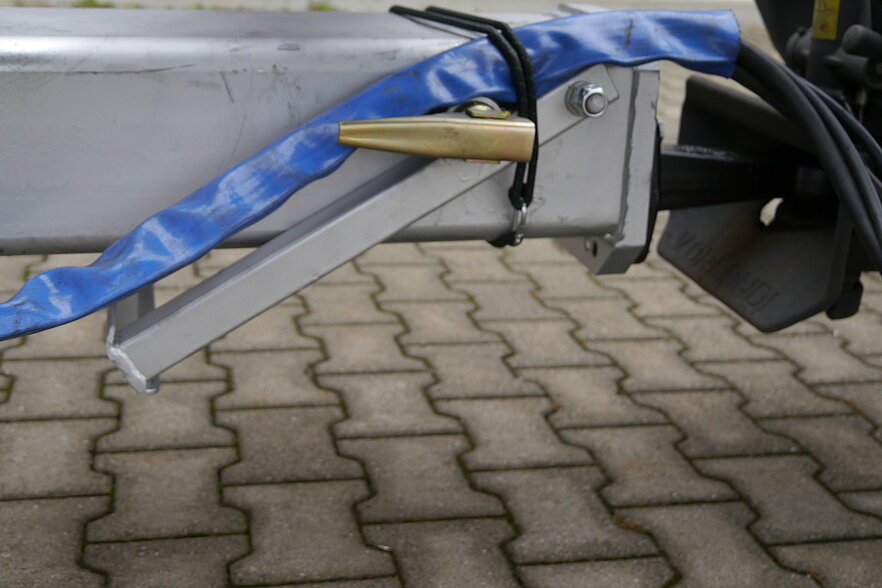

  • Extended, detachable tow bar, pivot point moved far to the rear - for an ideal turning circle
  • Uncomplicated reversing - no straightening and locking necessary
  • No deactivation of the steering from 40km/h onwards

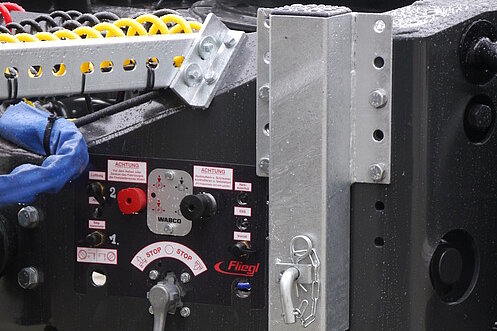

  • Support foot for safe parking

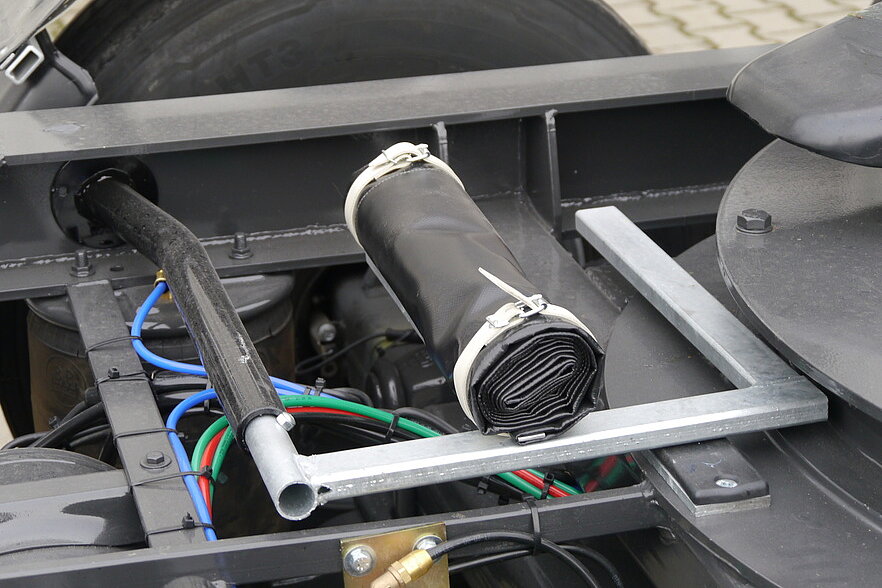

  • Removable tarpaulin between the mudguards to protect against splashing water

The Dolly CLG - the next patent-pending innovation from the winner of the German Sustainability Award. Dolly CLG: Clever. Lightweight. Steered.

Technical data

Type

Dolly CLG

MegaDolly CLG

Total width in mm max.

2.550

2.550

Total weight in kg

13.400

13.400
Unladen weight in kg approx.

2.100

2.100
Payload in approx.

11.300

11.300

Fifth wheel height in mm approx.

1.150

920 - 950

Trailer height in mm approx.

380

380

Axle make

BPW disc

BPW disc

Single tyres

285/70 R 19,5“

285/70 R 19,5“
