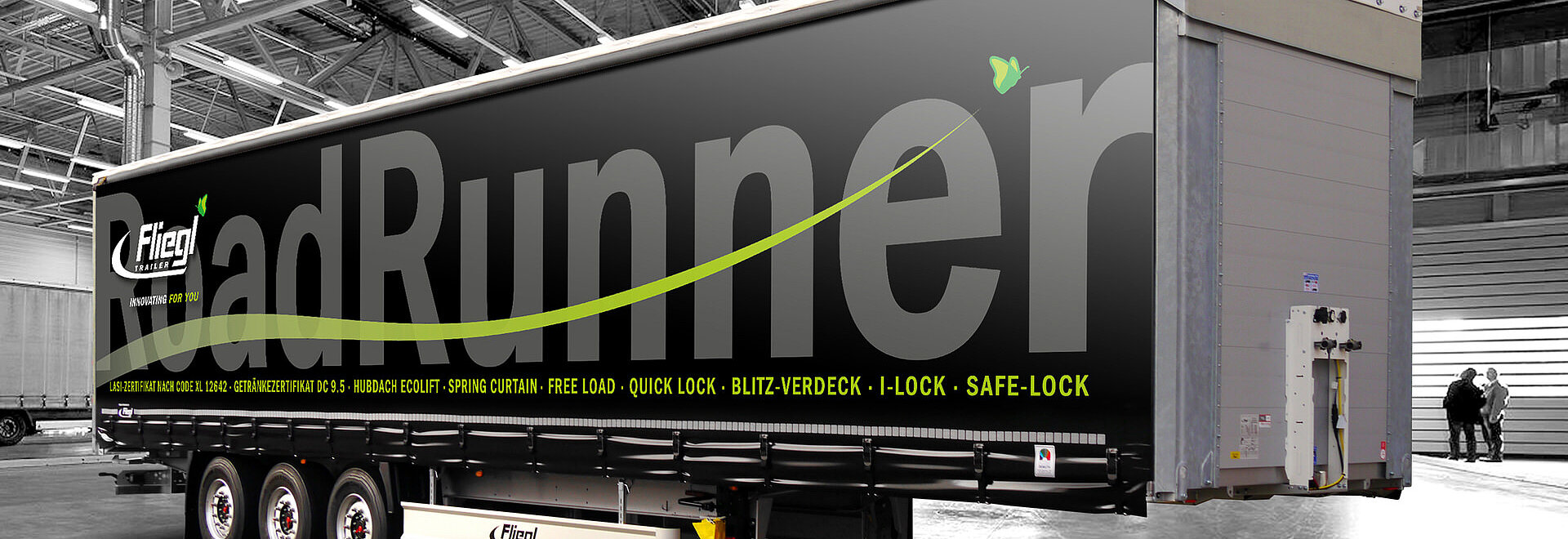

Fliegl Trailer

Fliegl trailers are among the industry leaders in terms of empty weight and capacity and are true workhorses. The Fliegl curtainsider has a payload advantage of 500 to 1000 kg compared to other trailers.

Even in the basic version, we focus on simple, safe operation and do without failure-prone electronics. Already during production we pay attention to sustainability. Frames and vehicle parts, for example, are painted ecologically in a highly efficient facility. Without energy-intensive stoving processes. The complete vehicle concepts are thought through down to the last detail in terms of sustainability; lightweight construction has the highest priority.

This is what trailer efficiency means to us:

10 % less weight
10 % less diesel
10% less CO2

Countless features also contribute to this. Whether time-saving tarpaulin central lockingQuick LocktheFreeLoad Systemfor the use of the complete loading width, the environmentally friendly lifting roofEco Liftor the roof bar that does not sagRoof non-elasticthe extremely time and space savingLightning hoodor the smooth-running door lock FlieglI-Lock. The list of components that express our understanding of efficiency is long.

Roof non-elastic

Roof non-elastic: +300 mm loading height

Roof bar made of torsion-resistant aluminium profile
No bending during loading and unloading
Through-loading height front: 2,900 - 3,130 mm
Through-loading height at the rear: 3,000 - 3,230 mm
Maximum lift height: 375 mm
Extreme time saving

Sliding roof Fliegl Blitz

Sliding roof Fliegl Blitz: 25 % time saving

25 % time saving when opening
390 mm more space for loading and unloading
No springing back when open
Say NO to plastics - spring steel instead of plastic
Maintenance-free and easy to repair: Up to 1,125 € savings per year *
Roller guide of the roof bows screwed, not riveted
in case of repair: easy replacement of individual roof bows everywhere possible
Integrated locking bar support
Integrated belt lift system

10 % less weight

10 % higher payload
10 % lower fuel consumption
10 % lower pollutant emissions

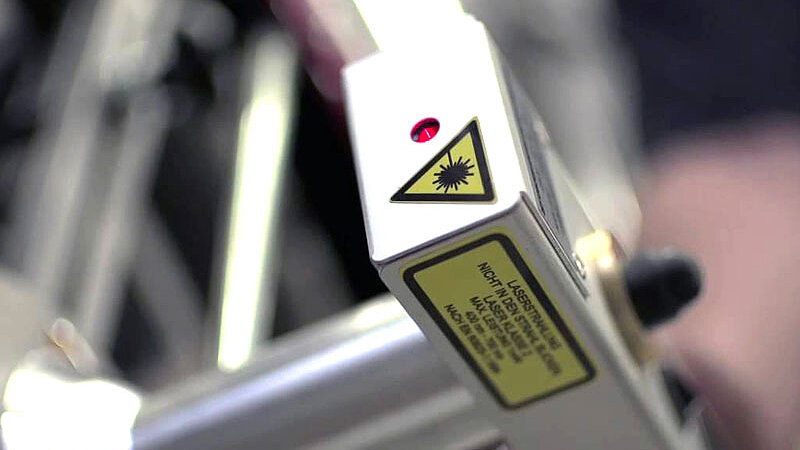

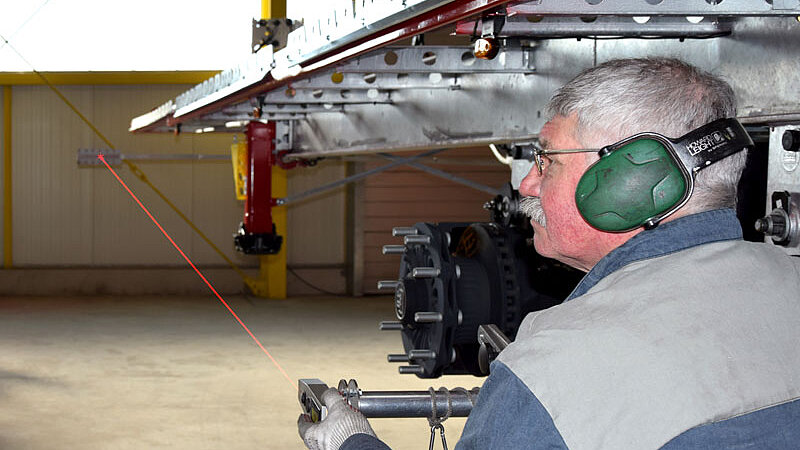

Laser track adjustment

Optimal alignment of toe and camber
Less wear on tyres and axles
Higher running performance
Less fuel consumption (approx. 2 litres/100 km)
Exclusively for Fliegl trailers

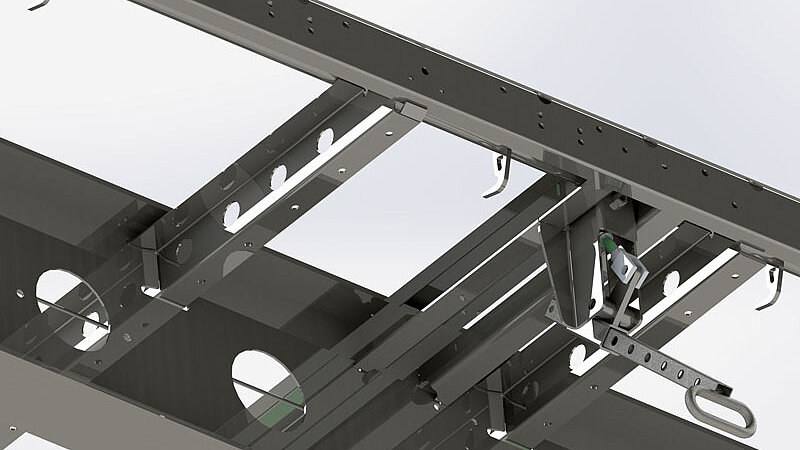

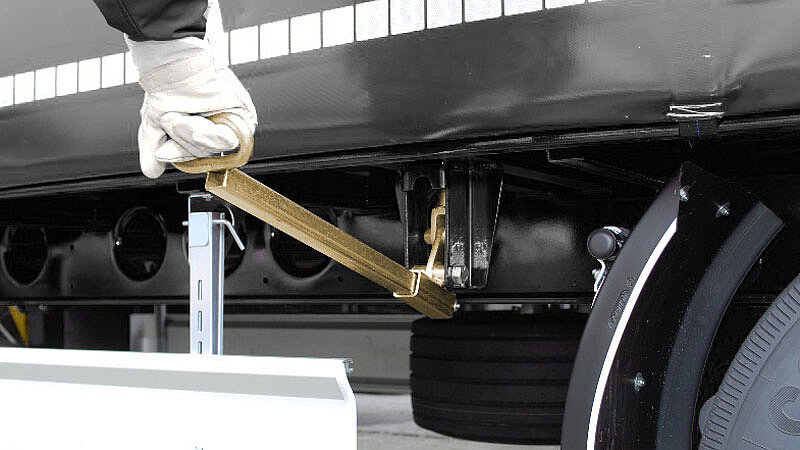

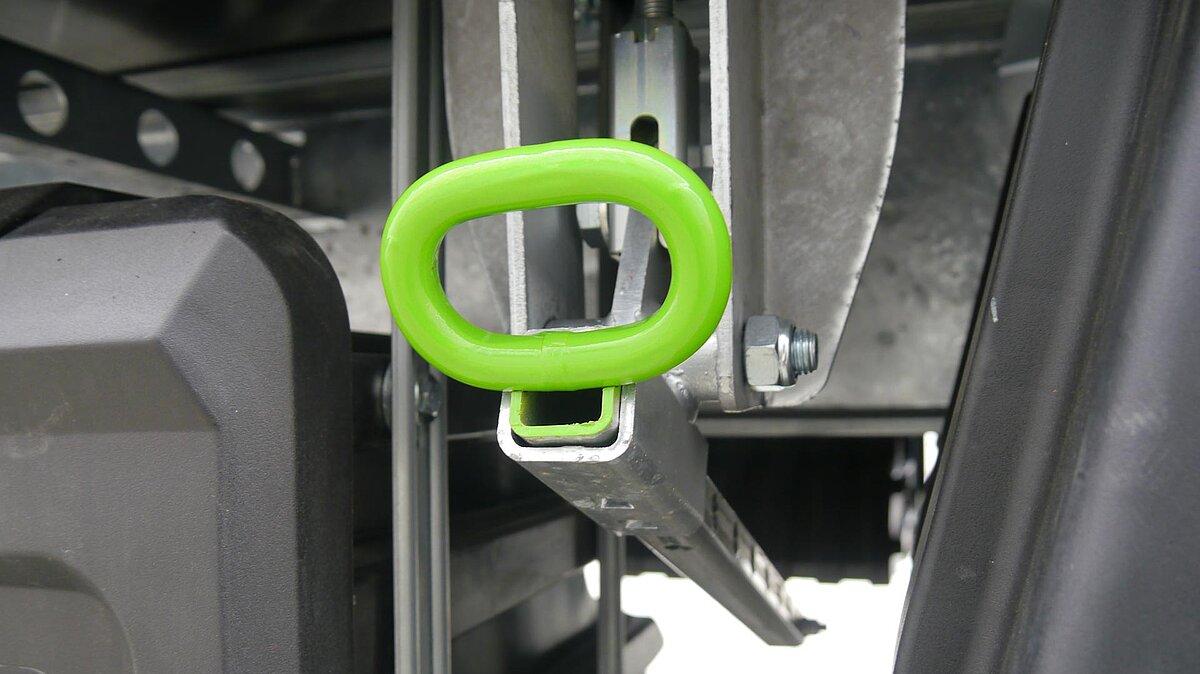

Quick Lock

Quick Lock central tarpaulin lock: 50 % time saving

Purely mechanical, therefore extremely resistant to repairs
All loops are tightened simultaneously by hand lever
Opening of all loops with only one movement
Time saving: 50% when opening and 33% when closing
Ideal for loading and unloading several times a day
Tested load securing (DIN EN 1642 Code XL and DC 9.5)
Single or double-sided design
Automotive version with integrated slats
12 or 20 locking points per side (depending on tarpaulin)
2 or 3 sliders per side
Optimal protection of the tarpaulin belts in the area of the wheels

Free Load System

Free Load System: +1.20 metre loading width

Revolution in loading and unloading
Full loading freedom on 13.20 m (instead of 12.00 m)
Considerable practical advantages:< Time saving, simple operation, loading fl exibility

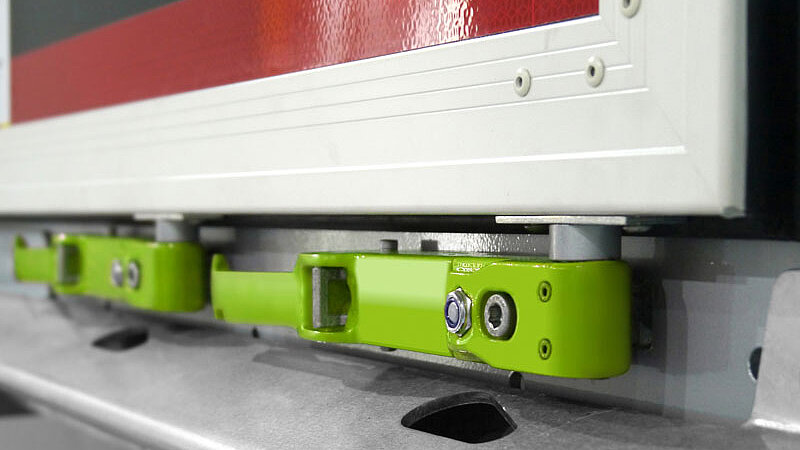

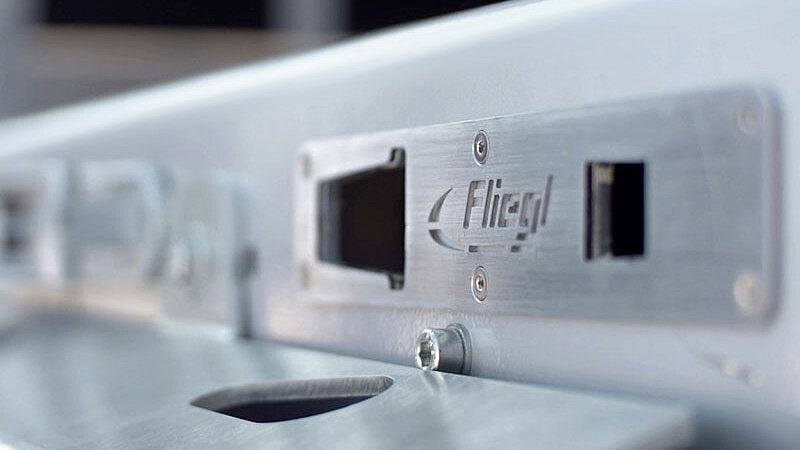

I-Lock

Patented door lock I-Lock

Minimal force required for opening and closing
Locking mechanism integrated into the frame
Fewer parts - less wear
Damage almost impossible
Saves 1000€ maintenance costs p.a.

Smart security

Smart safety with Safe-Lock

Safe-Lock Basis: Optical warning signal via the vehicle lighting in the event of unauthorised opening of the doors
Safe-Lock Basis Plus: Optical and acoustic warning signal
Safe-Lock Premium: Optical and acoustic warning signal as well as automatic reporting of GPS data and door opening times via push email to SmartWatch, SmartPhone, tablet etc.
Complete documentation
Compatible with other telematics systems
